The Petrotape gauging system is designed for monitoring above or below ground storage tanks. Gauged products include gasoline, fuel oils, crude oils, kerosene and diesel fuel with temperatures up to
225° F.

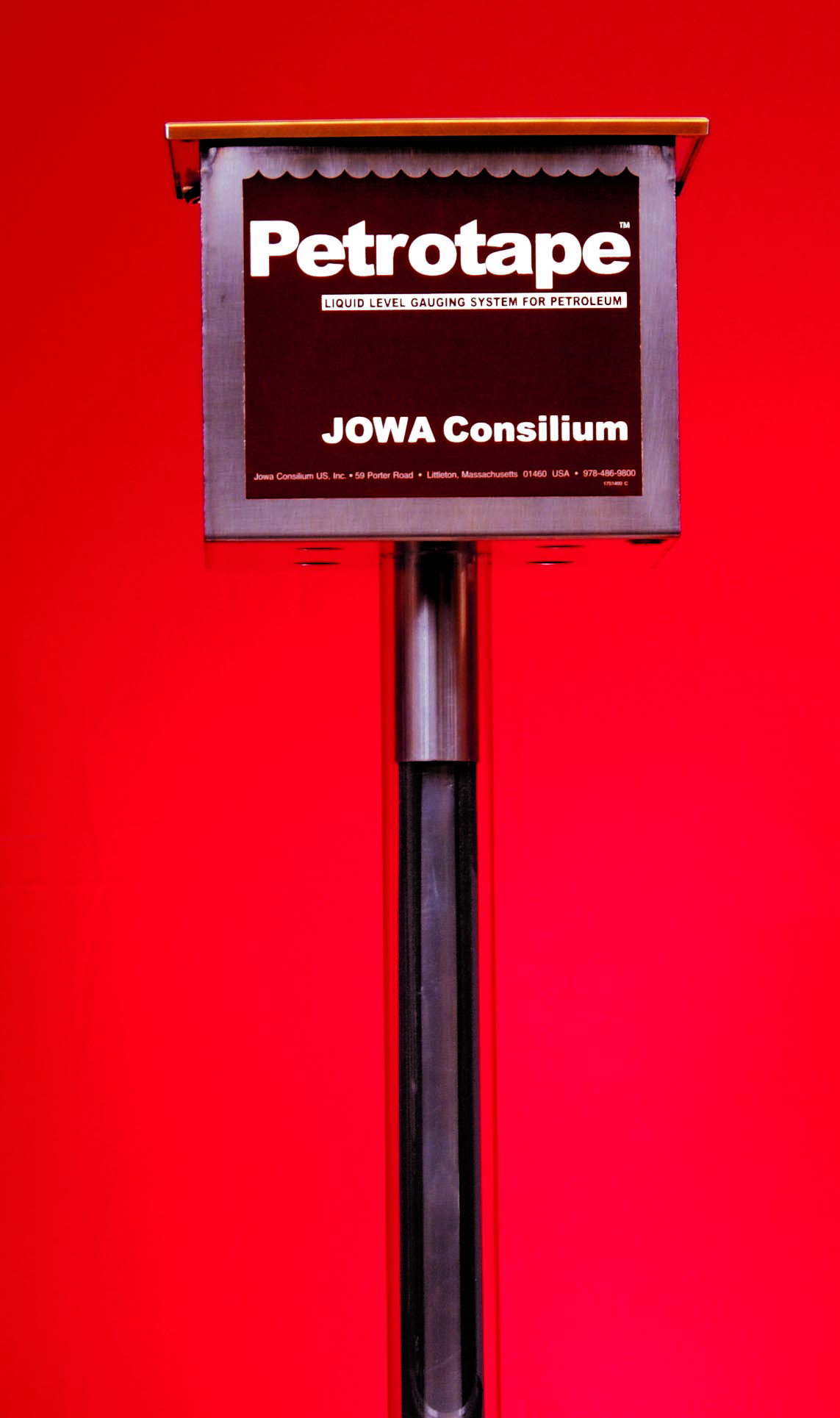

This packaged system consists of a Hastelloy jacketed Metritape sensor, a compact filter assembly, a sensor housing and a two-wire 4-20mA current transmitter. It is available in lengths of 3 to 100 feet. The filter assembly protects the sensor from moisture and contaminates and provides pressure equalization. The stainless steel sensor housing mounts to a 3 inch flange.

Excitation required is nominal 24VDC. This system offers the option of adding one temperature detector and corresponding 4-20mA output for monitoring temperature.
