Depth/Level Side Entry Cable - VL4563

Depth/Level Side Entry Cable - VL4563

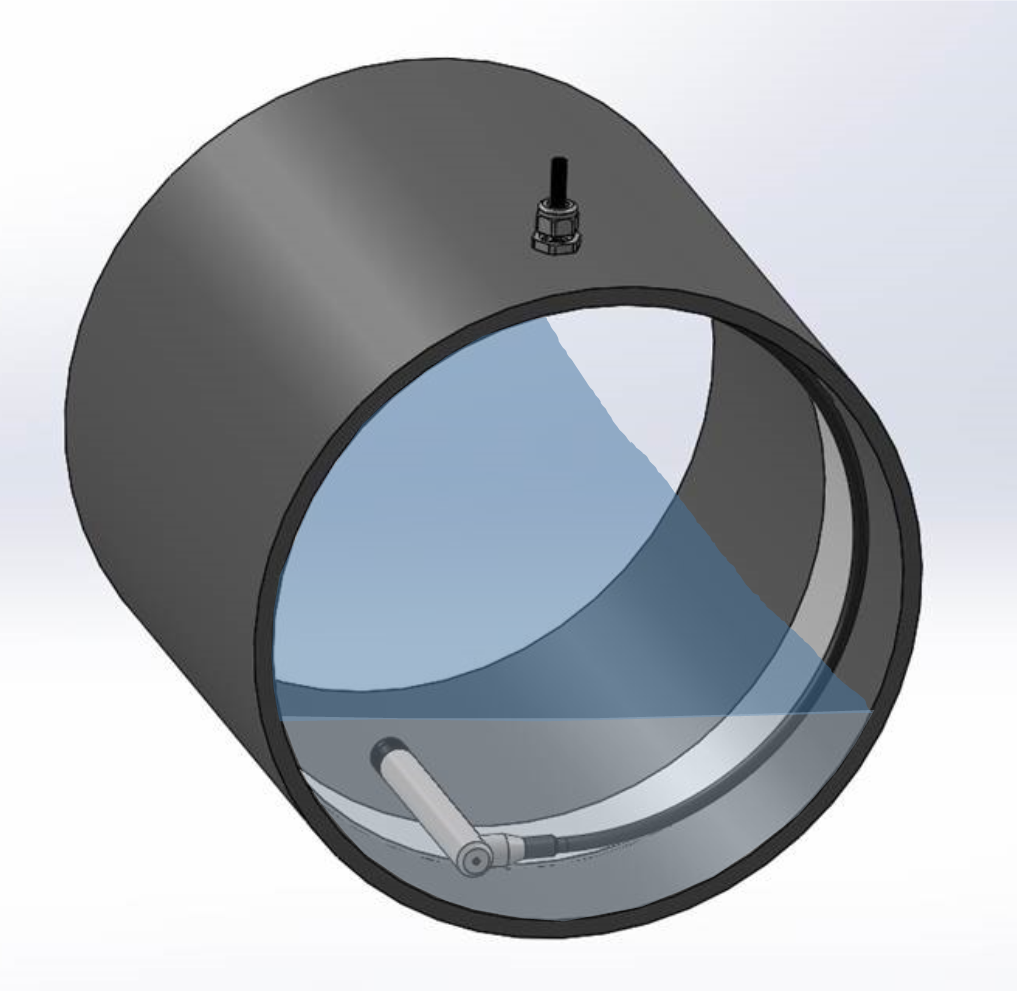

PMC has engineered a rugged side entry cable with optional wedge nosecone to facilitate the use of their submersible transmitters inside pipes where the level measurement is required under flowing conditions. This is offered as a standard option for “¾” inch diameter transmitters but can also be provided for other series. This combination is ideally suited for installations into sewer pipes to minimize flow restrictions and possible clogging.

Ranges: Full Scale (Zero based)
0-30, 50” WC
0-1, 5, 10, 15, 30, 50, 100, 150, 300 psig
0-50, 100, 150, 200, 300 psia
Other ranges and pressure units can be specified.
0.1% & 0.25% accuracy
0.725" diameter welded titanium
0-100 mV or 4-20 mA output
90° molded polyurethane cable
