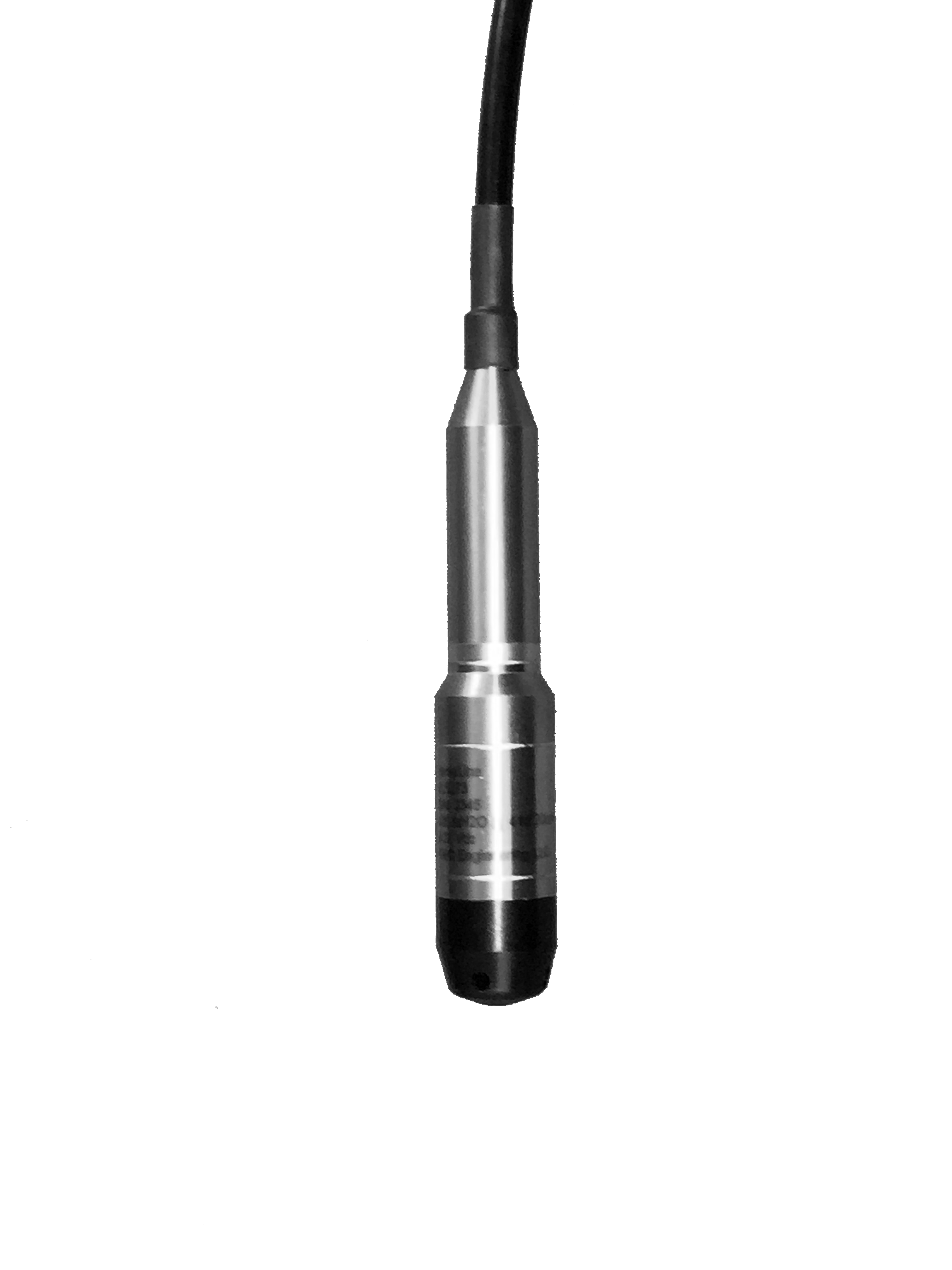

High Temperature Depth & Level Transmitter - VL5270

Available from PMC Engineering LLC

Product Details

The PMC VersaLine® VL5000 Series submersible transmitters are designed for depth and level measurements of ground, surface, waste and sea water. Suitable for small size bore holes, wells, dams, irrigation, sewage lift stations, rivers and oceanography. The VL5270 has been specifically developed for long term monitoring in wells and other applications where temperatures may be as high as 250°F. This is achieved by the use of a special FEP cable and assembly process.

Ranges: Full Scale (Zero based)
0-30, 50"WC

0-1, 5, 10, 15, 30, 50, 100, 150, 300 psig, and 500, 1000 psisg

0-50, 100, 150, 200, 300 psia

Other ranges or engineering units can be specified.

0.1% Accuracy
0-5VDC or 4-20mA
250°F continuous
1" diameter Titanium housing
