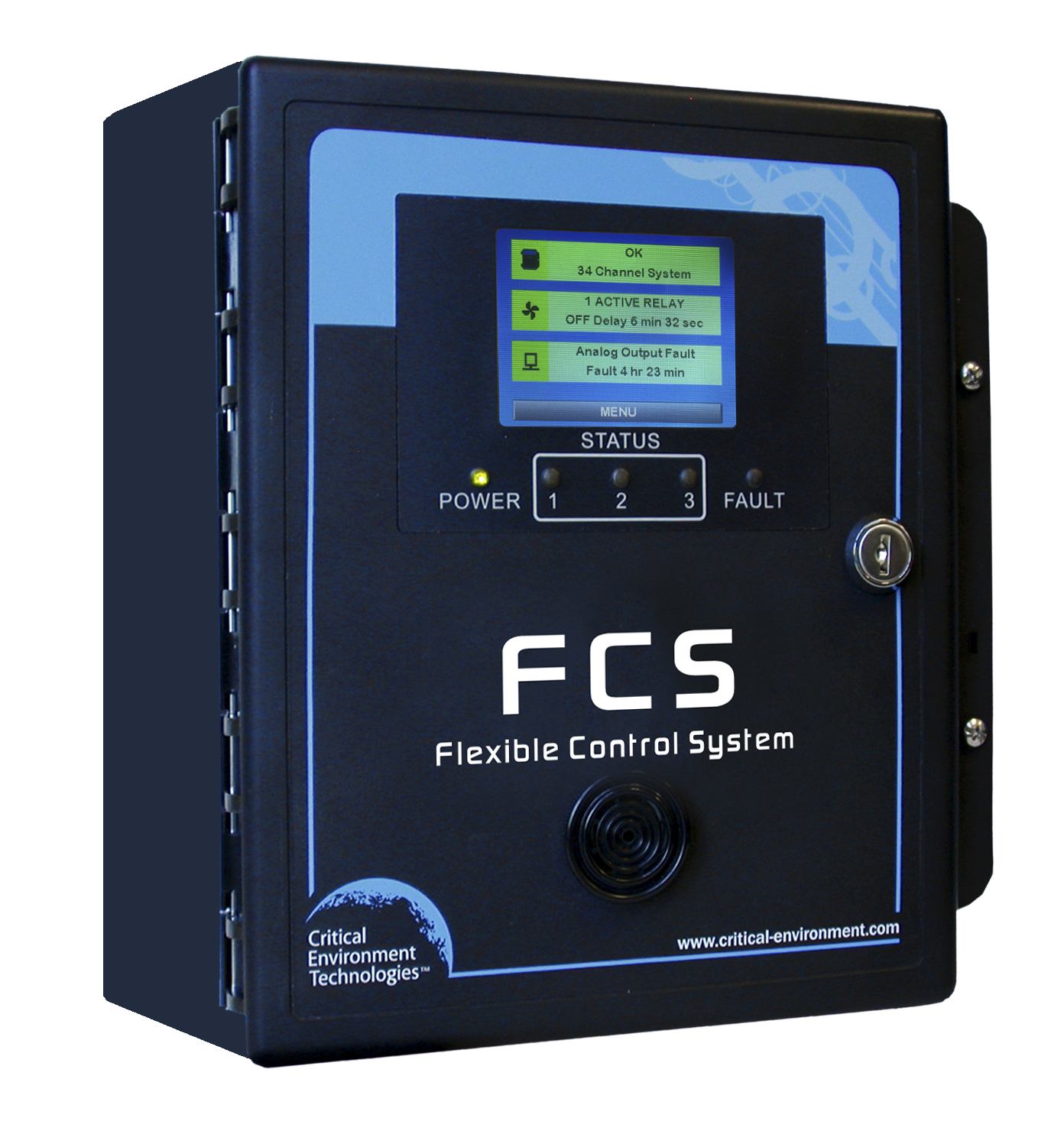

FCS Flexible Control System (up to 128 Channels)
Available from Critical Environment Technologies Canada Inc.
The FCS Flexible Control System offers up to 128 gas channel configurations for monitoring toxic, combustible and refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. It accepts inputs from digital and/or analog transmitters and/or Peripheral Devices (in various combinations), using Modbus® RTU RS-485 or 4-20 mA analog input.
The FCS is available in two models: the FCS-M with Modbus® RTU output or the FCS-B with BACnet® MS/TP output for communicating with a Building Automation System (BAS). Standard features include, four configurable SPDT dry contact relays with field configurable time delays and trigger levels, a full colour LCD resistive touch screen with LED panel indicating configurable channel alarm status, relay status and fault conditions, extensive menu system with password protection, enhanced logic control, priorities/zoning capabilities, a USB port for firmware upgrades, data logging and a door-mounted, audible alarm. The FCS has flexible configuration settings for analog outputs and supports 4-20 mA and Modbus® driven VFDs.
Optional value added features include, analog inputs and/or analog outputs, a top mounted strobe, a locking door, a manual shut off switch and a water tight, door-mounted audible alarm.
It can also be configured to comply with California Title-24 Building Energy Efficiency Standards.
