Baghouse Cage Measuring Form for Replacement Cage Identification

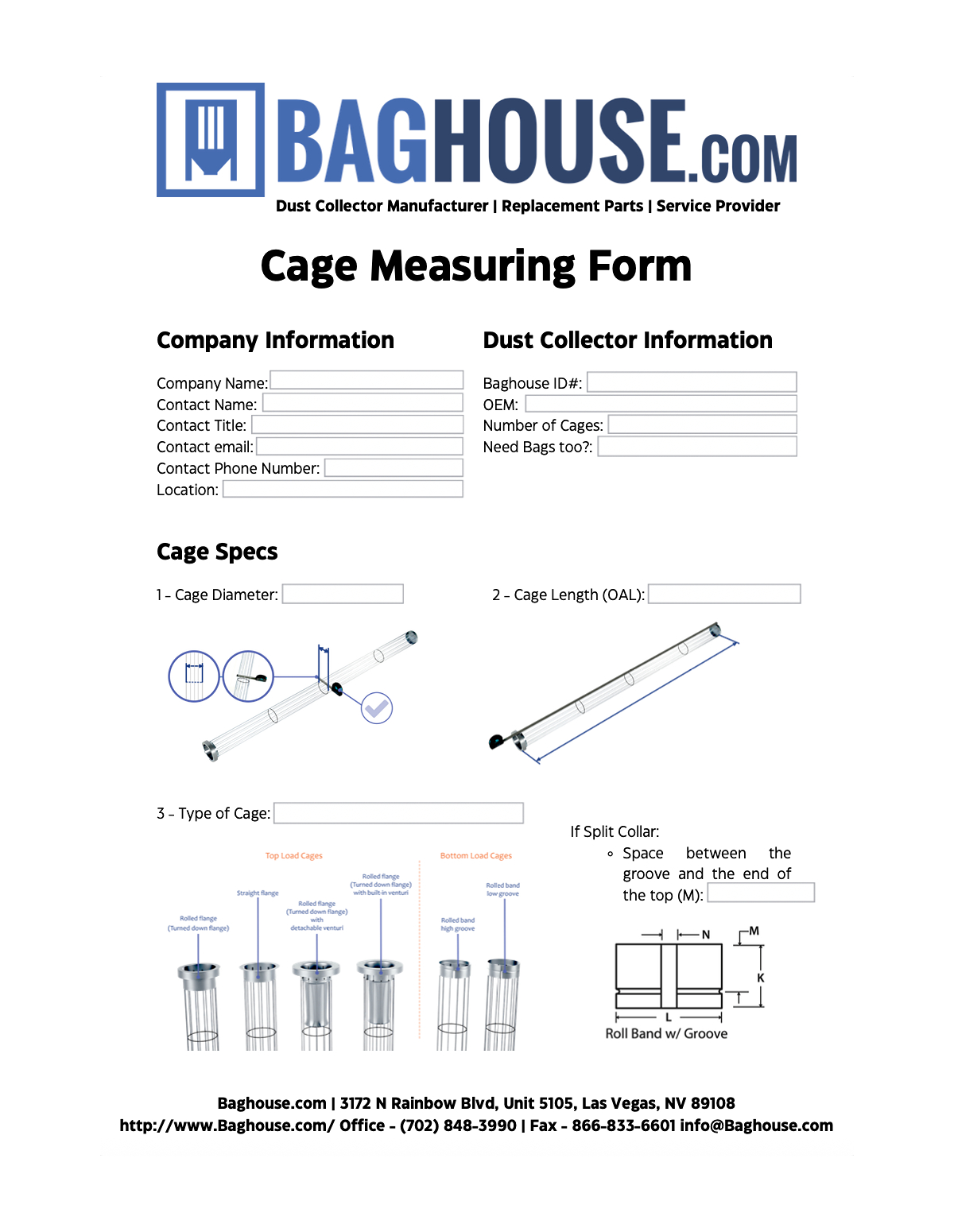

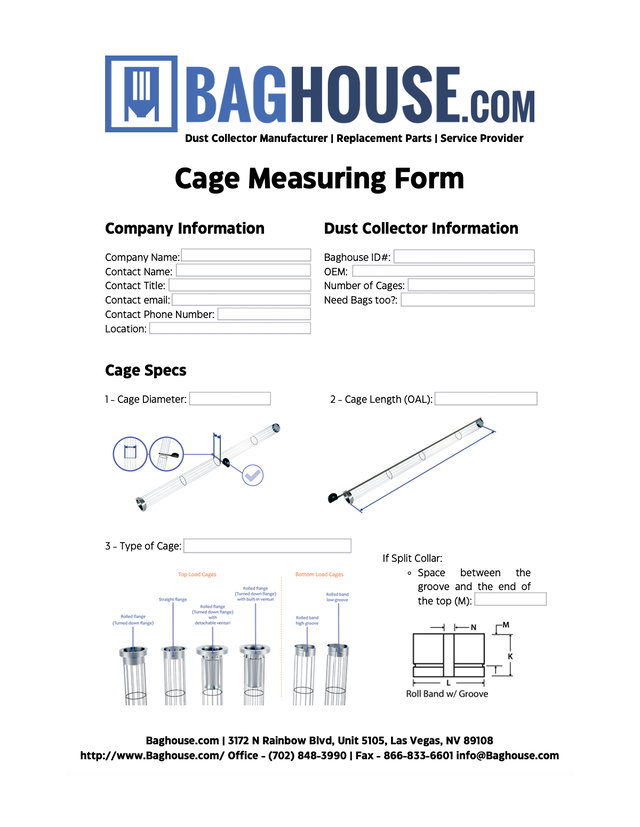

This form is designed to help maintenance personnel, purchasing departments, and plant operators accurately measure and identify replacement baghouse cages. It collects company and dust collector information, along with critical cage dimensions and specifications required to manufacture or source the correct replacement cage. The form guides users through measuring cage diameter, overall length, cage style (top-load or bottom-load), tubesheet hole size, cage material, one- or two-piece construction details, venturi type and material, and the number of rings and vertical wires. Illustrated diagrams and examples are included throughout the document to simplify the measurement process and reduce the risk of ordering incorrect replacement components. The form also references a step-by-step instructional video for additional guidance.
