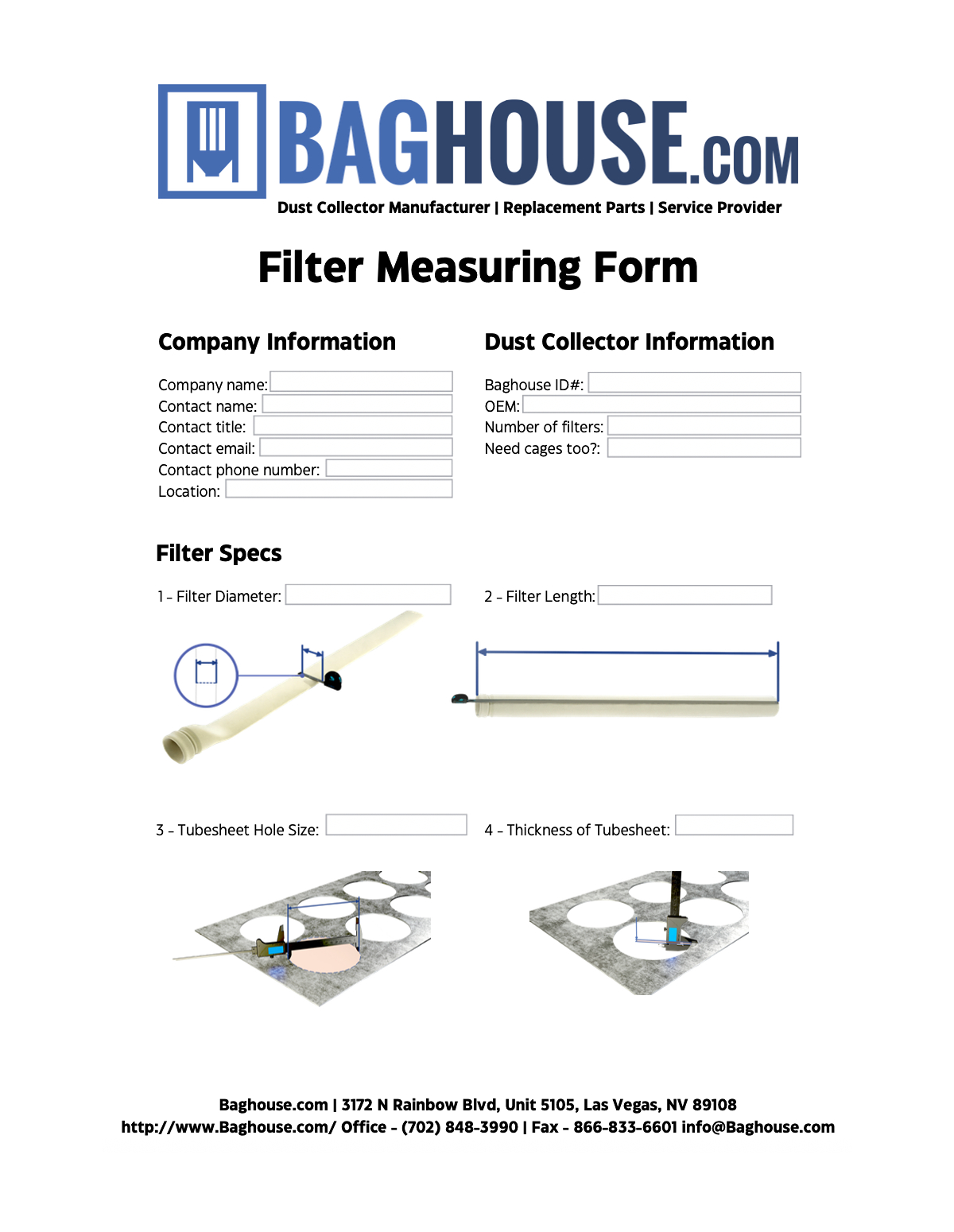

Baghouse Filter Measuring Form for Accurate Replacement Filter Identification

This form is designed to help facilities accurately identify and specify replacement dust collector filters. It captures company and dust collector information, along with all critical filter dimensions and construction details needed to ensure a proper replacement. Users are guided through measuring filter diameter, overall length, tubesheet hole size, and tubesheet thickness. The form also documents filter type (pulse-jet, reverse air, shaker, cartridge, pleated, HEPA, envelope, or scrubber), top and bottom construction styles, filter treatments, and filter media options such as polyester, aramid, fiberglass, P84, PPS, PTFE felt, nanofiber, and more. Illustrated examples and diagrams simplify the measurement process, while a step-by-step instructional video is referenced to help users collect accurate information and reduce the risk of ordering incorrect replacement filters.
