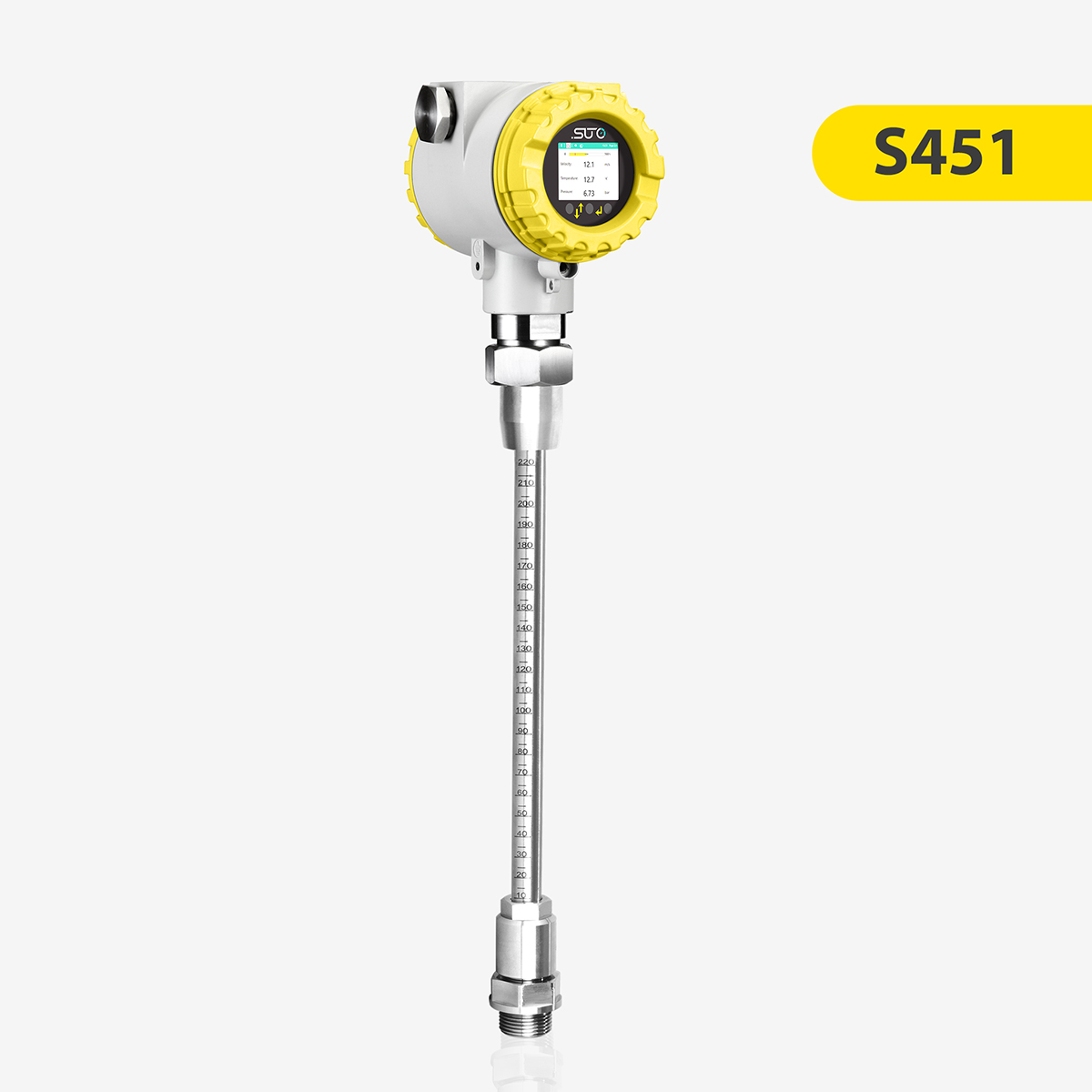

S451 Thermal Mass Flow Meter for Heavy Duty and Ex Applications (Insertion)

S451 Thermal Mass Flow Meter for Heavy Duty and Ex Applications (Insertion)

The S451 Compressed Air Flow Meter is a robust and highly accurate thermal mass flow meter designed specifically for heavy-duty applications and hazardous environments. With its advanced insertion-type sensor, the S451 is perfect for monitoring compressed air and gas flow in a wide range of industrial settings, including those requiring explosion-proof equipment.

Key Features:

Durable Design: IP67-rated with stainless steel or nickel-plated components for corrosion resistance.
High Accuracy: Measures mass flow, standard flow, consumption, pressure, and temperature.
Data Logging: Built-in data logger with wireless access via the S4C-FS app for Android and iOS.
Easy Installation: Insertion sensor installable under pressure through a ball valve; rotatable sensor head for display visibility.
Comprehensive Outputs: Supports Modbus/RTU, Modbus/TCP, 4-20 mA analog outputs, and pulse/alarm outputs.
Explosion Proof: Certified for ATEX, IECEx, and other safety standards.

Specifications:

Medium: Air, N₂, O₂, CO₂, and non-corrosive gases.
Temperature: -30 to +140°C (Non-Ex), -30 to +90°C (Ex)
Pressure: 0 to 5.0 MPa (Non-Ex), 0 to 1.6 MPa (Ex)
Protection Class: IP67 (standard), IP65 (Ex option)

Ordering Information:

Available in standard configurations with options for different shaft lengths, gas measurements, and pressure ranges.
